Geotechnical Laboratory

Being a One Stop Geotechnical Soil Investigation contractor, Foundtest  also provides laboratory testing services as well.  All construction materials, soil samples (disturb & undisturbed) and rock samples collected on site can be further tested in our associate labs according to the client or design engineer's requirement.

LABORATORY SOIL TESTS



BS1377 : 1990

MOISTURE CONTENT





Part 2, Method 3.2

ATTERBERG LIMITS ( LL, PL, PI )



Part 2, Method 4 & 5

LINEAR SHRINKAGE LIMITS



Part 2, Method 6.5

BULK DENSITY





Part 2, Method 7.2

SPECIFIC GRAVITY ( PARTICLE DENSITY )

Part 2, Method 8

PARTICLE SIZE DISTRIBUTION - COARSE GRAINED.

Part 2, Method 9.2 & 9.3

PARTICLE SIZE DISTRIBUTION - FINE GRAINED.

Part 2, Method 9.5











UNCONFINED COMPRESSION TEST ( UCT )

Part 7, Method 7.2

38mm diameter, 1 specimen





50mm diameter, 1 specimen





70mm diameter, 1 specimen















UU TRIAXIAL COMPRESSION TEST WITHOUT P.W.P.

Part 7, Method 8

38mm diameter







50mm diameter







70mm diameter

















CU TRIAXIAL COMPRESSION TEST WITH P.W.P.

Part 8, Method 7

38mm diameter







50mm diameter







70mm diameter

















CD TRIAXIAL COMPRESSION TEST WITH P.W.P. & VOL.

Part 8, Method 8

38mm diameter







50mm diameter







70mm diameter

















ONE DIMENSIONAL CONSOLIDATION TEST

Part 5, Method 3

e vs log pressure, Mv & Cv, t90 graphs



e vs log pressure, Mv & Cv, t50 & t90 and c-alpha













LABORATORY PERMEABILITY TEST



Falling Head Permeameter ( k>E-04 m/s )

[ KH Head, Vol.2 - 10.7.2 ]











CHEMICAL TESTS ON SOIL / WATER



pH value







Part 3, Method 9

Total / soluble sulphate





Part 3, Method 5

Chloride content





Part 3, Method 7

Organic matter





Part 3, Method 8

Total dissolved solids





Part 3, Method 9

Salinity Test





Part 3, Method 10



DIRECT SHEAR STRENGTH ( 60 x 60mm samples )

Part 7, Method 4

Soaked - Consolidated Drained ( 3 specimen )













ROCK TEST







Unconfined compressive strength



[ ASTM D2938-79 ]

UCT with Young's Modulus & Poisson's Ratio

[ ASTM D3148-80 ]

Point Load Strength





[ Broch, E & Franklin, JA ]

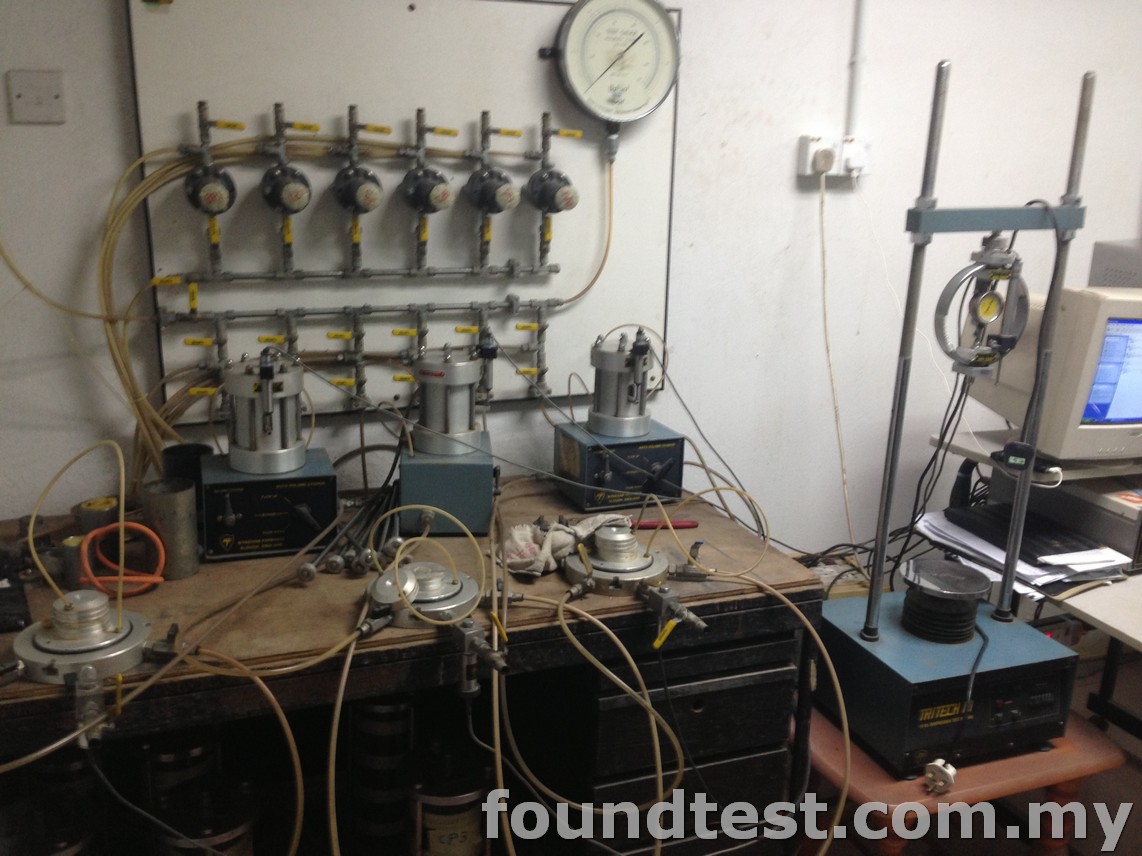

Isotropically Consolidated Undrained (C.I.U) Triaxial Compression Test:

Isotropically Consolidated Undrained (C.I.U) Triaxial Compression TestC.I.U Test

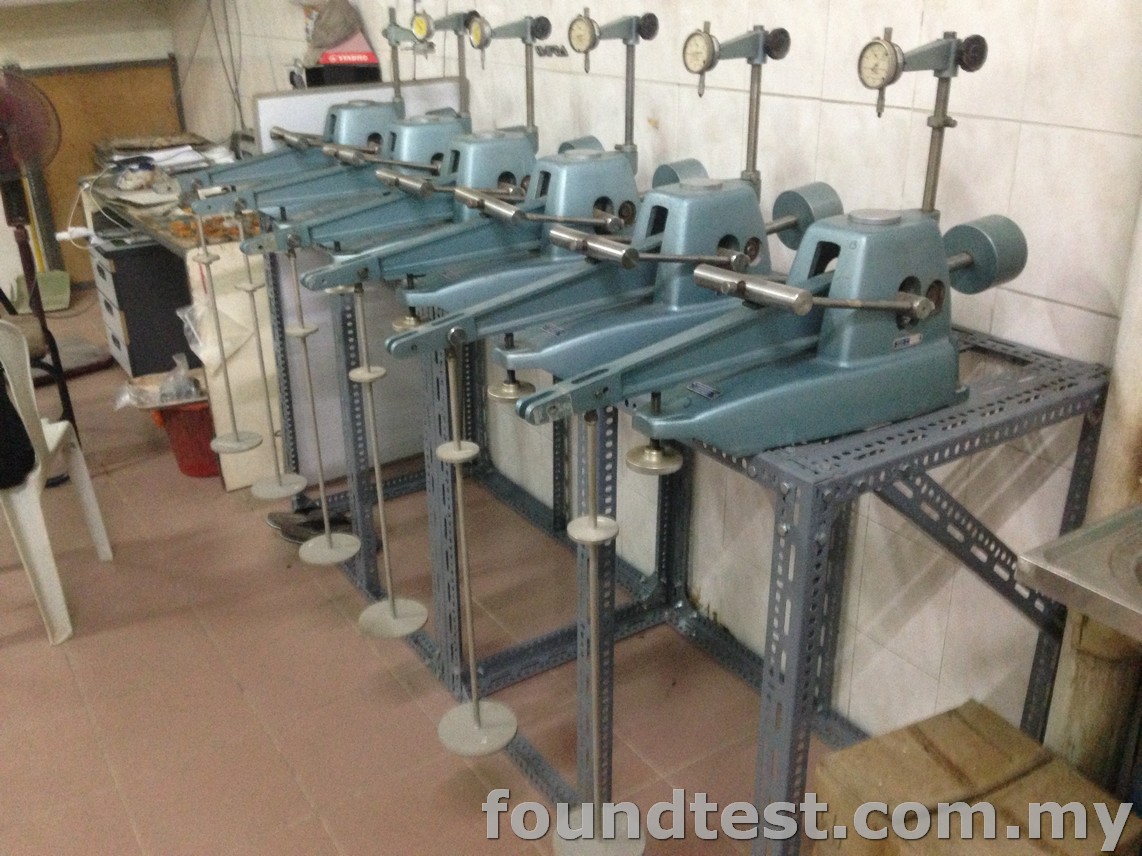

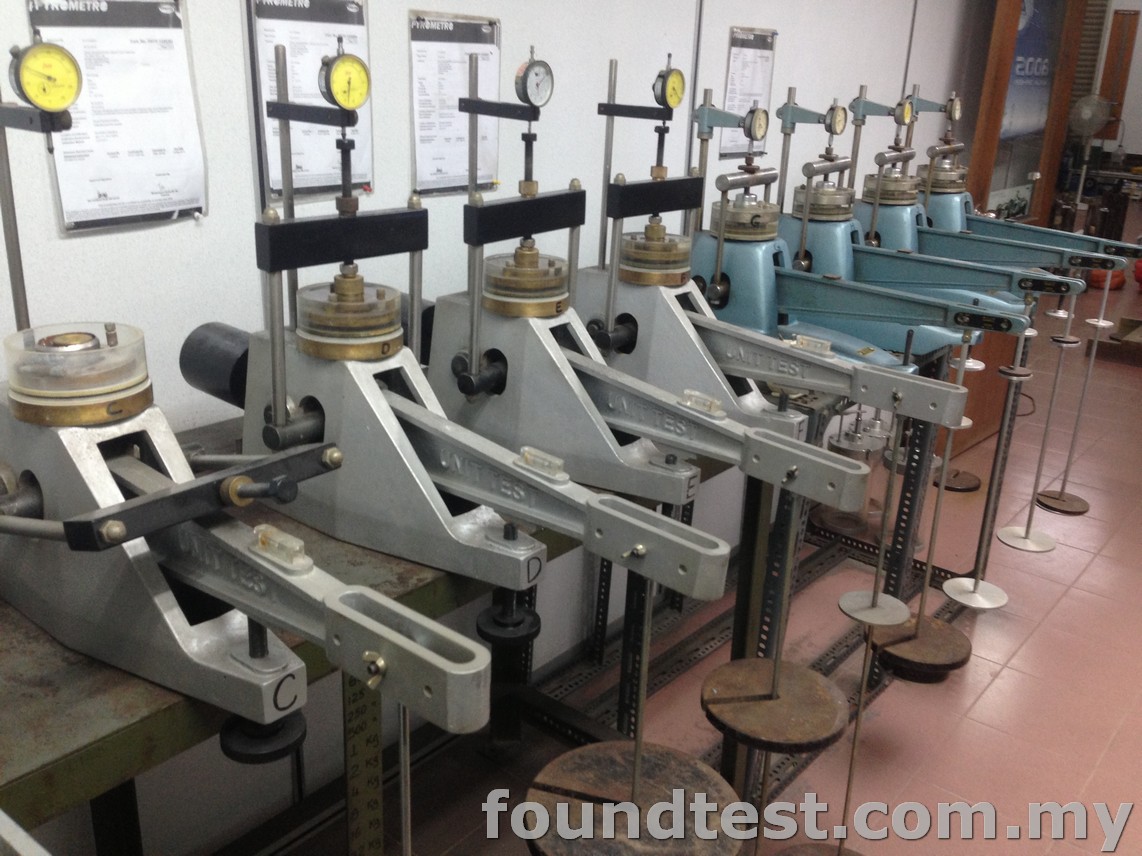

Consolidation Test:

Consolidation TestConsolidation Test

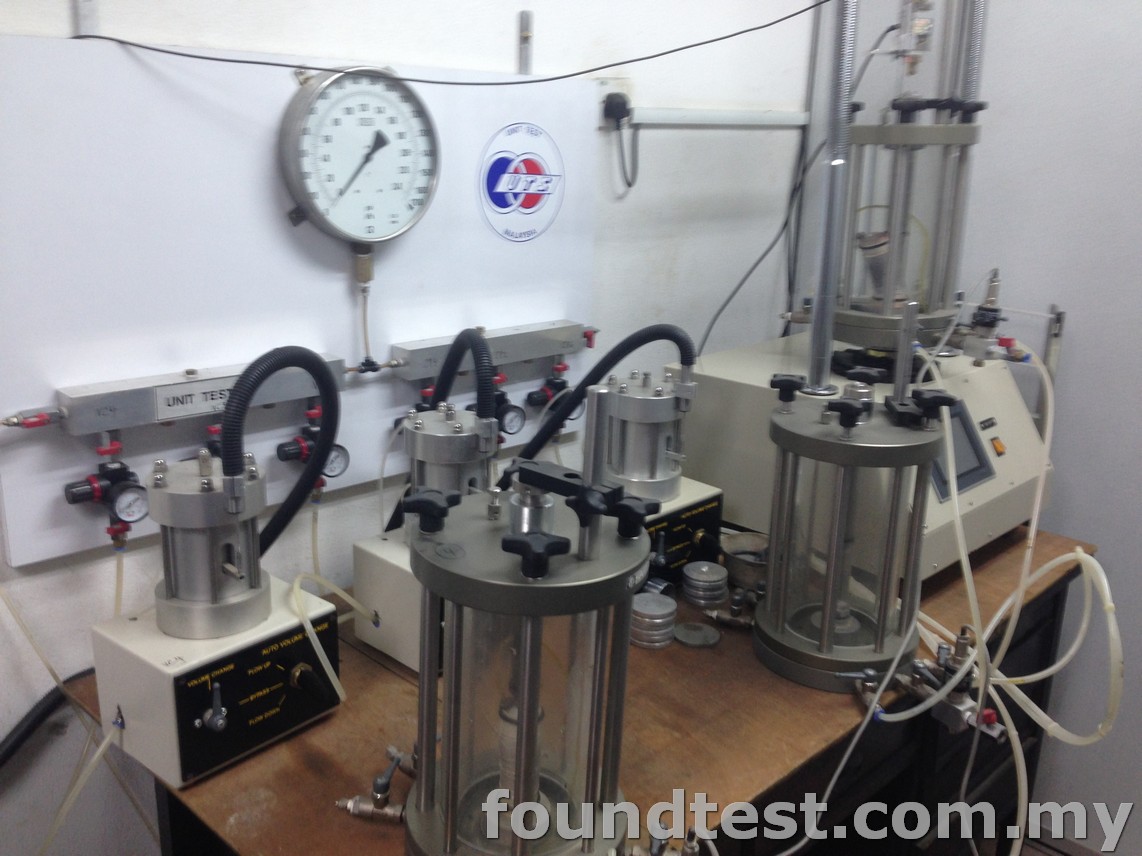

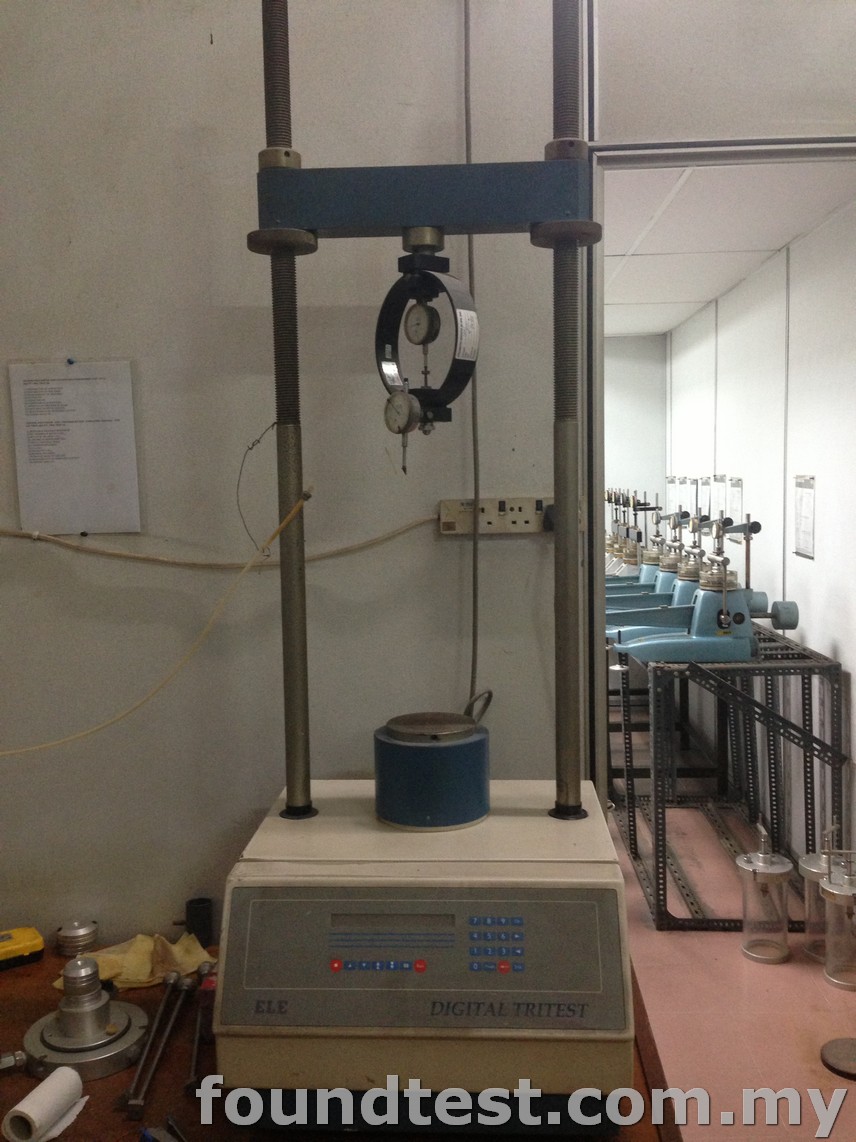

Unconsolidated Undrained (UU) Triaxial Compression Test:

Unconsolidated Undrained (UU) Triaxial Test

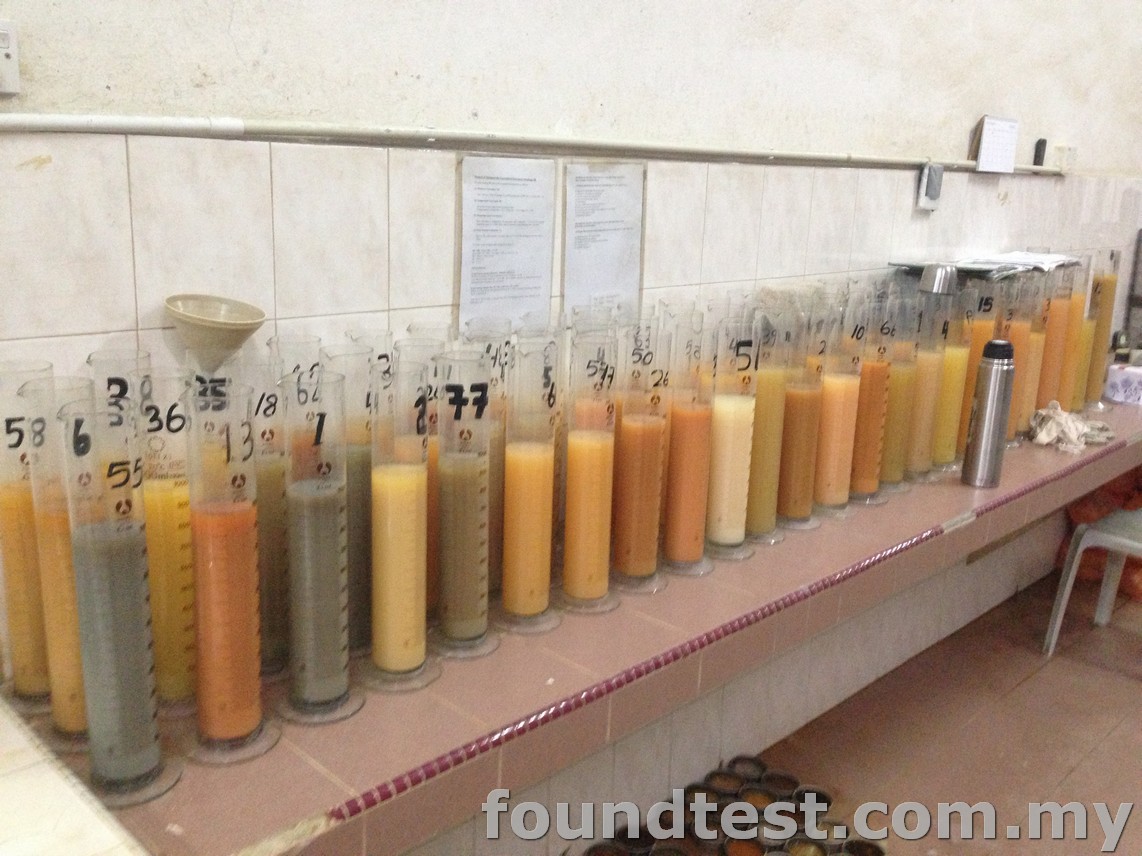

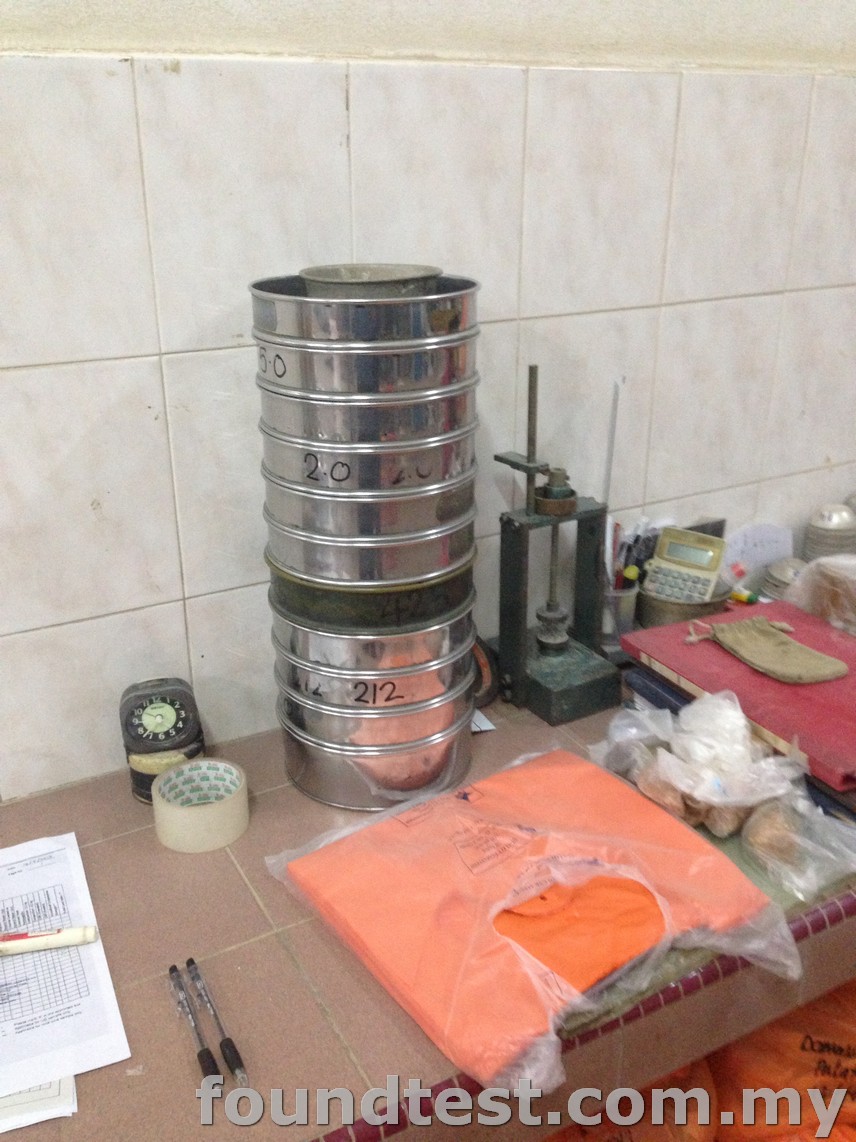

Particle Size Distribution (Hydrometer Analysis / Sieving):

Particle Size Distribution - Hydrometer AnalysisParticle Size Distribution - Sieve Analysis

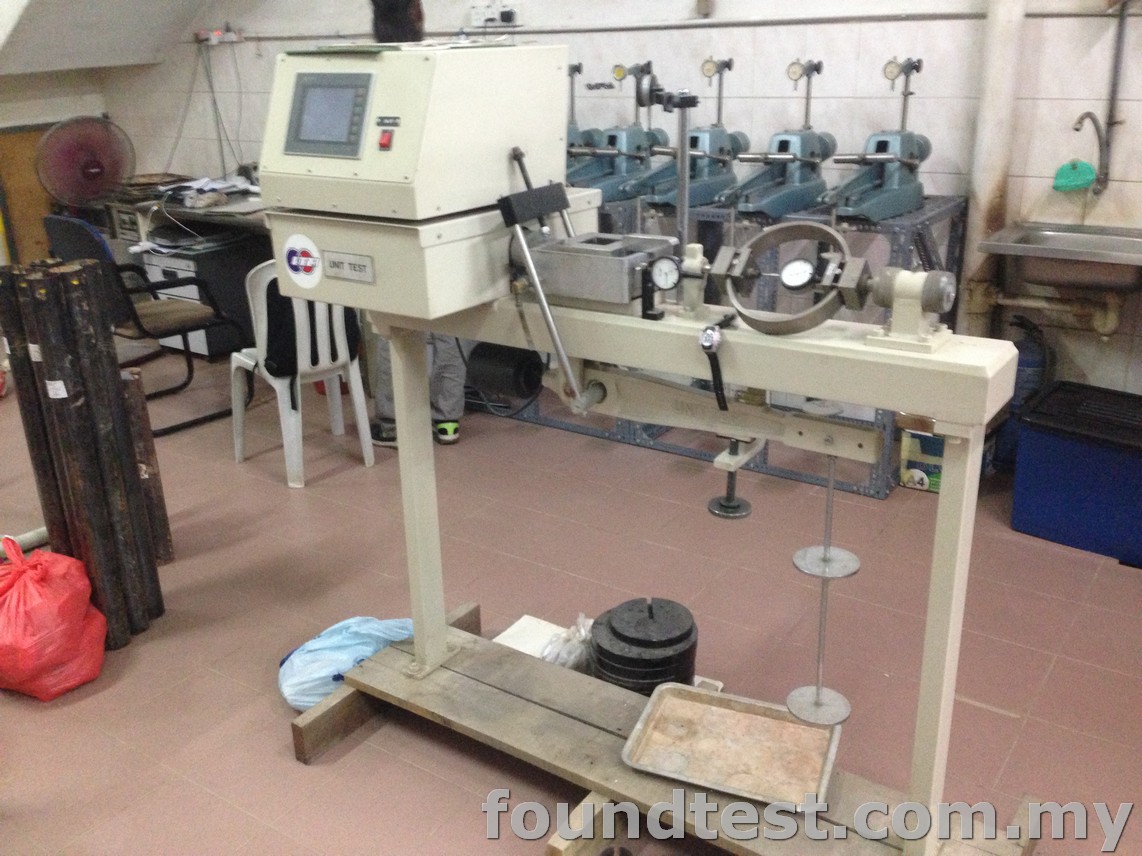

Shear Box:

Shear Box

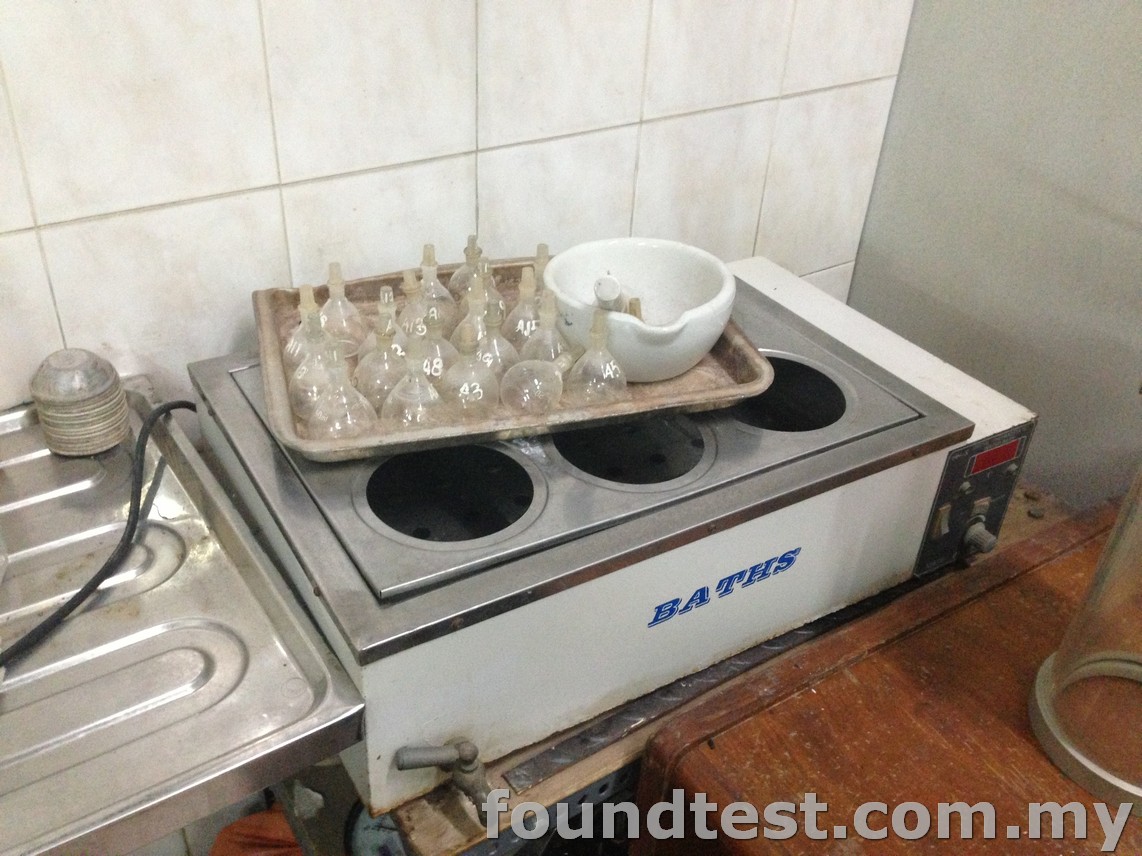

Specific Gravity:

Specific Gravity

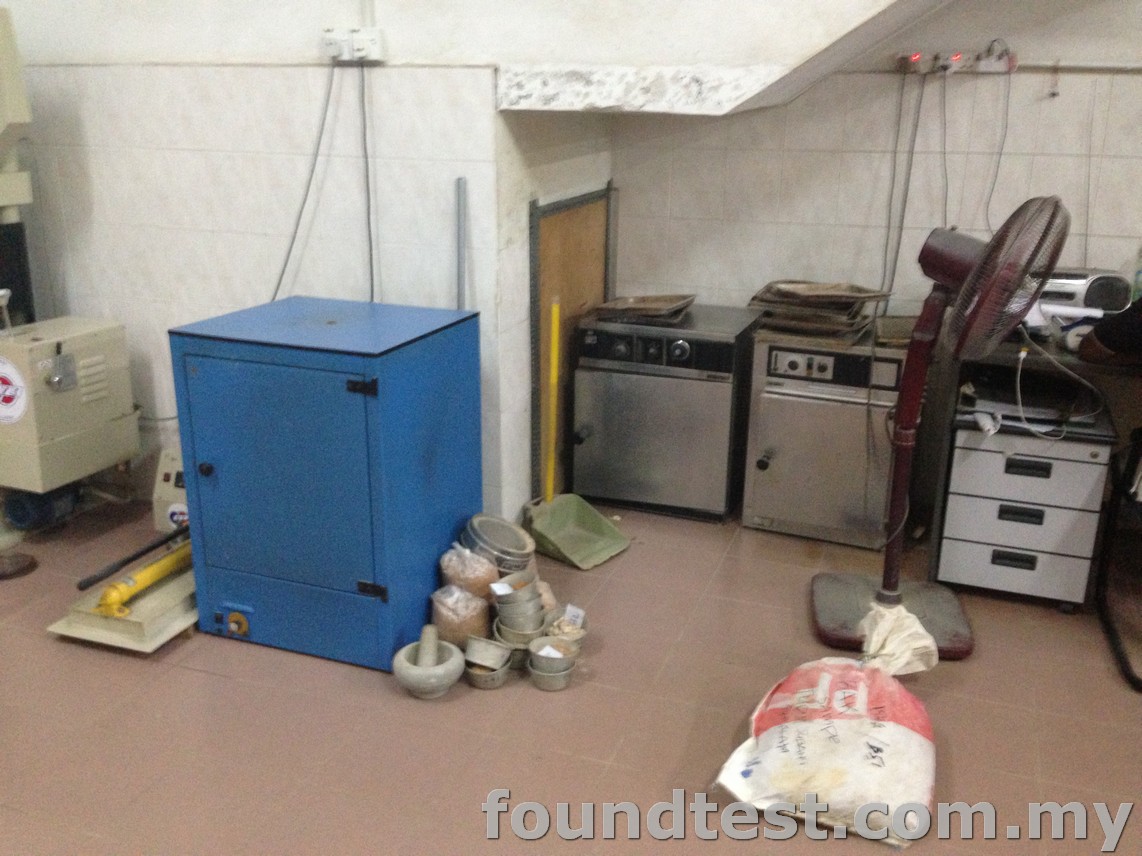

Moisture Content:

Moisture Content

For more information, quotation or site appointment, please call us or drop us a message here.
