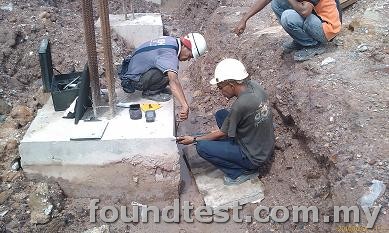

Windsor Probe Test (WPT)

        Windsor Probe Test is a test system designed to evaluate the compressive strength of concrete in place. It is non destructive and can be used with equal effectiveness on fresh and mature concrete. Equally accurate results are obtained on horizontal or vertical surfaces provided that the probe is perpendicular or at right angles to the test surface.

         A hardened steel alloy probe is propelled at high speed by an exactly measured explosive charge into the concrete and its penetration measured. The compressive strength of the concrete is directly related to the resistance to penetration of the crushed aggregate and cement matrix.

        The Windsor Probe Test conforms to the ASTM C803-97 and MS 26: Part 3: 1992.
